Garmin GPS Aera 760
| Order number: | 68550 |
| Brand: |
Garmin
|
| Screen diagonal: |
17,8 cm
|
| Aviation database: |
Yes
|
| WAAS / EGNOS-capable: |
Optional
|
| Compatible with FLARM: |
Yes
|
| Connectivity: |
WLAN
Bluetooth |
| Compatible with Garmin GDL 50: |
Yes
|

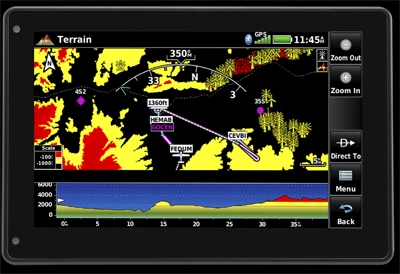

| Terrain warning: |
Yes
|
| Obstacle warning: |
Ja
|
| Device type: |
Portable
|
Prices include VAT plus shipping costs
1 - 4 workdays
Depending on shipping and payment method- Quick shipping service
- Parcel tracking
- Personal advice

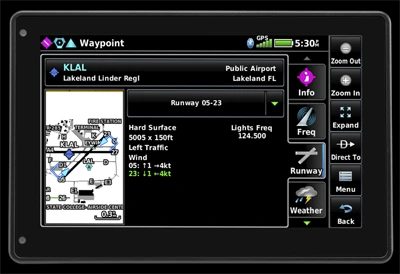

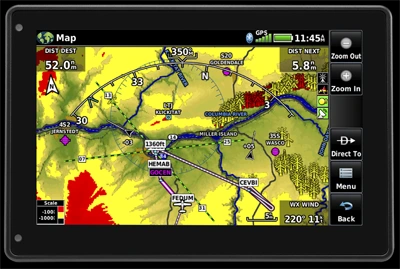

In the Aera 760, the pilot will find many familiar features and controls from other devices in the Aera series as well as the Garmin cockpit devices, which make the transition to the new device easier. The Jeppesen Atlantic International Database provides information on aerodromes, VORs, NDBs, intersections and airspaces. In addition to the classic moving map display, a3D display is available.
The following optional charts can be installed in the unit: Jeppesen VFR and IFR airport and approach charts as well as ICAO charts Germany and other VFR charts for Europe.
Using Bluetooth® connectivity via Garmin Connext technology, the aera 760 easily interfaces with compatible devices to cut the clutter in your cockpit and improve your flying experience. With a Garmin GDL® 50 portable ADS-B/ receiver or GTX 345 all-in-one ADS-B transponder, you can access and display ADS-B advanced traffic alerts It even allows wireless control of Garmin VIRB® action cameras to start and stop recording and capture photos. With optional cables, it can be connected to Garmin on-board devices such as GTN 650/750 and GNS 430W/530W to exchange routes. When compatible Garmin NAV/COMs are connected, frequencies and airport IDs can be passed from the Aera 760.
Technical features:
- GPS/GLONASS receiver
- WVGA touchscreen, screen diagonal 7" (17.8 cm), 480 x 800 pixels
- Operation in portrait or landscape format
- 3D view with attitude
- Up to 4 hours operating time with one battery charge for typical device use
- Rechargeable lithium-ion battery
- microSD card slot, USB-C
- Bluetooth, WiFi
- Ext. Voltage 11 - 35 VDC
- Dimensions approx. 185 x 123 x 23 mm, weight with battery approx. 560 g
The attitude indicator is meant as a backup and is not a substitute for certified onboard equipment.
Scope of delivery:
Garmin Aera 760, mount with cigarette lighter cable, USB-C cable, power adapter, USB-C to USB-C cable, USB-C to USB-A cable, quick start guide (English). A manual (English) is available for download.
